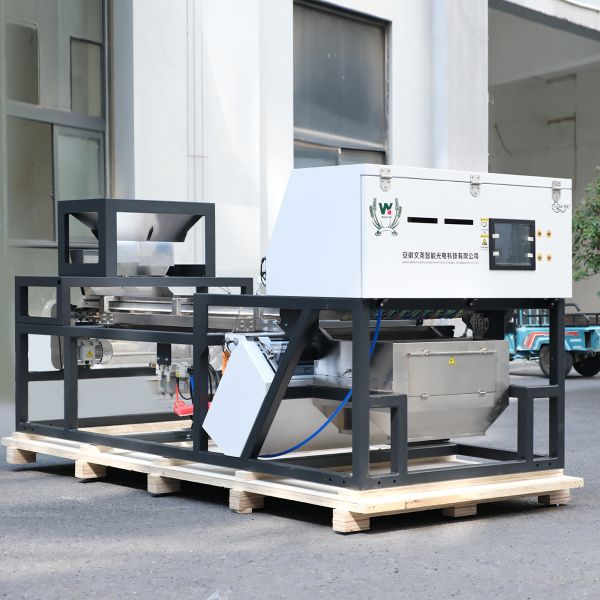

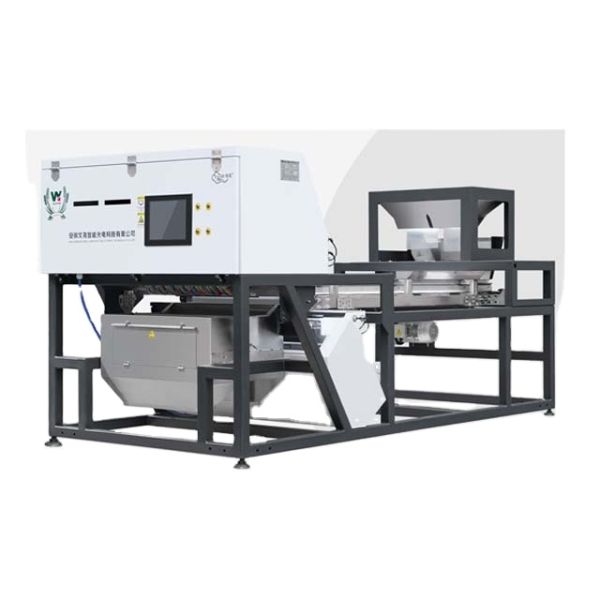

Plastic Color Sorting Machine with Powerful LED Light Source America ALTERA FPGA Chip and 1000kg/h Sorting Capacity

Brand Name : WENYAO

Model Number : WYCS4-256

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1

Payment Terms : T/T or L/C

Supply Ability : 200Sets/month

Delivery Time : 30-40 days

Packaging Details : Wooden case

Power Source : Taiwan Meanwell Brand

Warranty : Two Years

Machine Name : Plastic Color Sorting Machine

Air Pressure : 0.6-0.8

Processor : America ALTERA FPGA Chip

Air Filter : CKD Filter / SMC

Power Consumption : 3.5KW

Sorting Capacity : 1000kg/h

Contact Now

WENYAO Kernel & Seed Color Sorting Machine represents an advanced and intelligent screening apparatus. It employs high-precision optical sensor technology, which enables it to rapidly and precisely distinguish color variances, defects, and foreign substances within kernels and seeds. By means of a high-speed jet system, it can accurately expel unqualified items, thereby effectively enhancing product quality and purity. This machine is applicable to the sorting and processing of a diverse range of nuts and seeds, boasting advantages such as high sorting precision, rapid efficiency, and straightforward operation. It significantly caters to the stringent demands for high-quality raw material screening in sectors like food processing and agricultural seed treatment.

Plastic Color Sorting Machine with Powerful LED Light Source America ALTERA FPGA Chip and 1000kg/h Sorting CapacityPlastic Color Sorting Machine with Powerful LED Light Source America ALTERA FPGA Chip and 1000kg/h Sorting Capacity

MODEL(Technical Parameters) WYB2
Channels 128
Output(kg/h) Depend on raw material impurity 800-2000
Sorting Accuracy(%) ≥99.9
Carryover Rate(bad:good) ≥13:1
Power Supply(KW) 2.5
Work Air Pressure(Mpa) 0.2-0.3
Air Consumption(L/min) 600-1200
Voltage 180-240V/50Hz
Weight(kg) 800
Diamension/Size (L*W*H)mm 3185*1410*1480
Package Wooden Case
